agria 9600

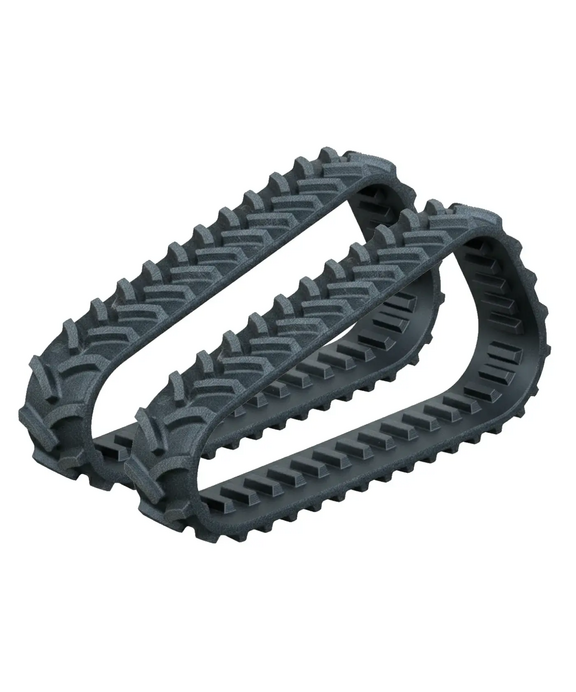

Name: Pair caterpillar treads 9600 AS
Brand: agria
SKU: 9620011
Rating: 5 (1 reviews)

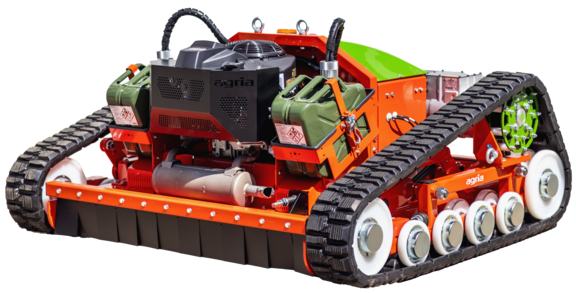

Remote controlled high grass rotary mulcher

The hybrid-powered all-rounder

The agria 9600 remote-controlled mower with the innovative hybrid drive concept: electric traction drive and powerful combustion engine. The professional machine for mowing areas that are difficult to access.

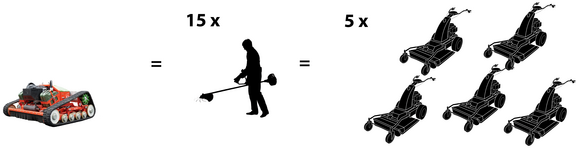

agria 9600 Area coverage: High area coverage = low costs

High area output = low costs

Thanks to its exceptionally high area output, the agria 9600 not only saves time but also money.

Green space maintenance

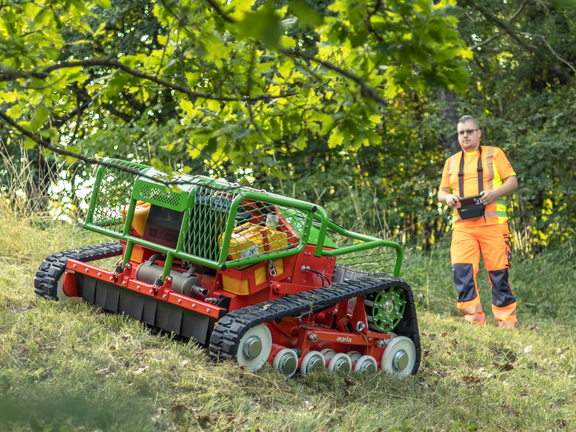

agria 9600 Remote controlled high grass rotary mulcher on the slope

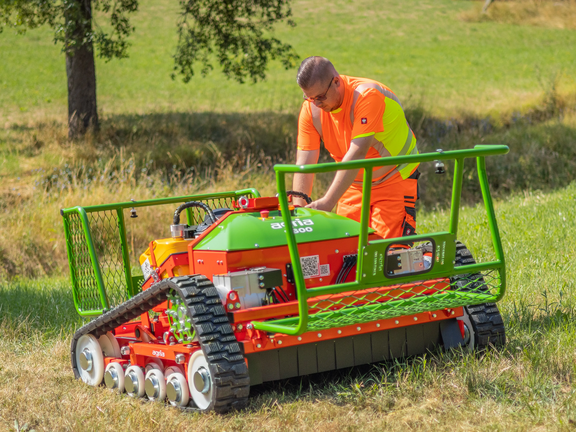

agria 9600 Remote controlled high grass rotary mulcher with open branch deflector

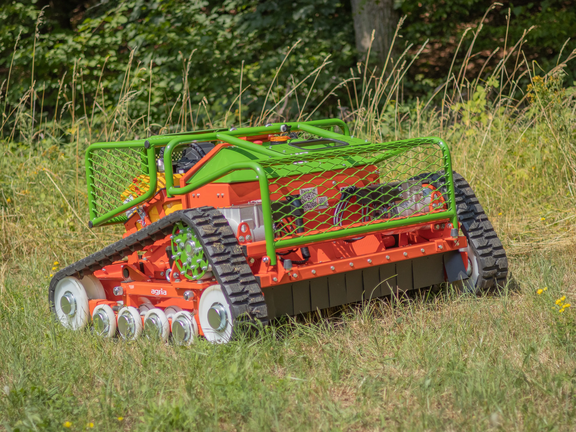

agria 9600 Remote controlled high grass rotary mulcher in use

As the sickle mower is positioned between the Crawler tracks, it is possible to mow both forwards and backwards. This avoids soil-damaging and time-consuming turning maneuvers. These can also be dangerous on steep slopes. With the agria 9600, you can reverse back into the next lane without having to turn - with identical mowing results regardless of the direction of travel. This achieves unrivaled acreage performance at a working speed of up to 10 km/h.

more about green space maintenance

Machine equipment and information

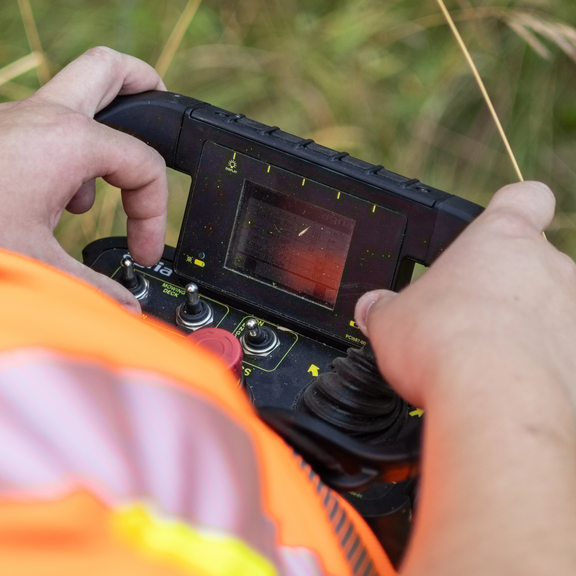

Equipped as standard: Remote control with tilt sensor

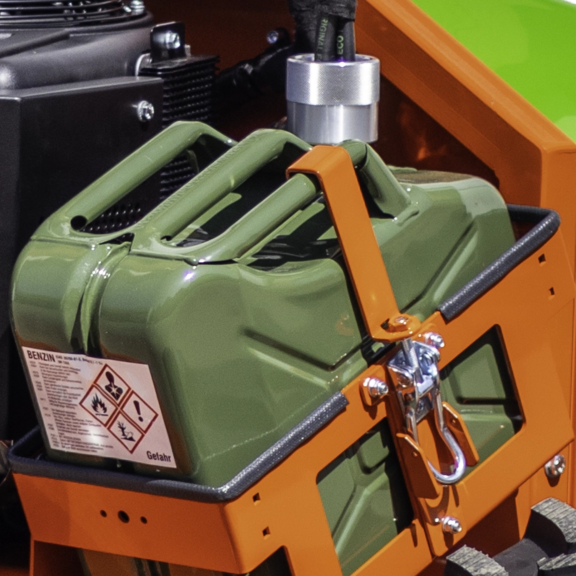

Removable-fueltank- system by Agria, fuel level display on remote control

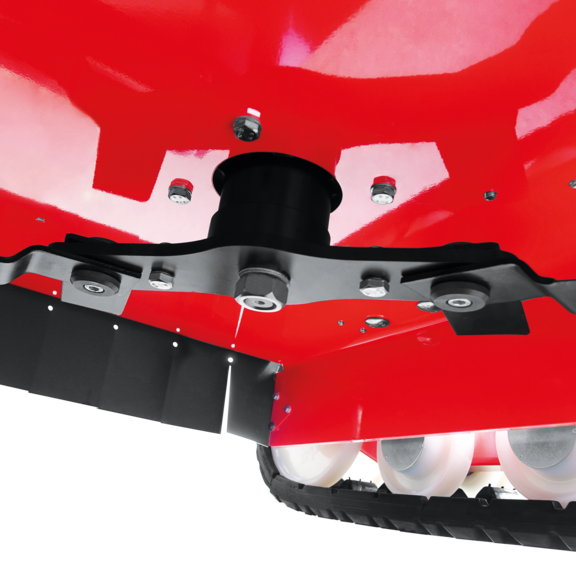

Robust swinging blades that dodge obstacles

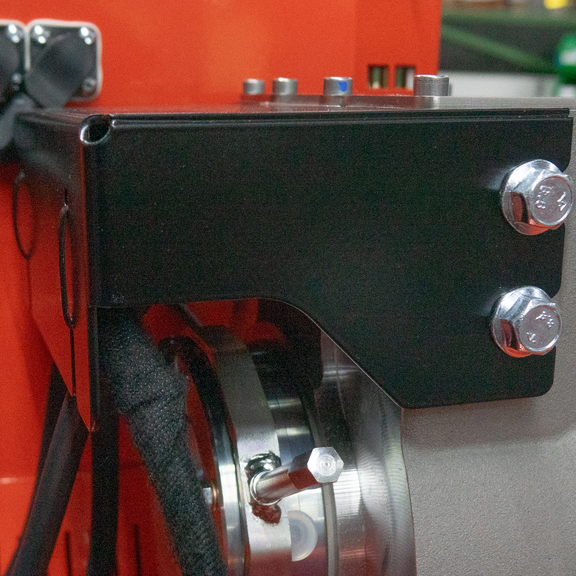

Electric engines are brushless and maintenance free

Protection against thrown objects: Safety flaps tested

Technical data

	agria 9600-112
Item number	9600 241
Engine	Kawasaki FS730V EFI Air-cooled 2-cylinder 4-stroke OHV Benzinmotor 17,7 kW (24,0 PS)
Engine torque	53.4 Nm at 2,400 rpm
Fuel system	Agria interchangeable fuel tank system 2 x 10 liters
Traction drive	Stepless and brushless electric drive, 48 V DC, safety extra-low voltage
Drive stages/ Speed range	4 speed ranges: Range 1: 0 - 2.5 km/h; Range 2: 0 - 4 km/h; Range 3: 0 - 6 km/h; Range 4: 0 - 8.5 km/
Brake	Electromechanical fail-safe Brake
Slope capability	55° (143 %)
Mower	High-grass sickle mower
Blades	2 blade supports with 4 pendulum blades each
Cutter Drive	V-belt via Electromagnetic clutch
Working width	112 cm
Cutting height	50 - 185 mm, electrically infinitely adjustable
Area output	approx. 5,000 m²/h at 5 km/h
Radio control unit	Autec safety RC system 2.4 GHz with 2.8 inch color display
Max. Maximum range	300 m
Recommended max. working range	100 m
Inclinometer for remote control	-
Dimensions L x B x H	145 x 150 x 72 - 85.5 cm
Ground pressure	0.18 kg/cm²
Weight (with full Fuel cans)	approx. 653 kg

- Standard equipment

Benefits at a glance:

Balanced weight distribution, crawler chassis and low center of gravity for ground-protecting and safe off-road use
No time-consuming and ground-damaging turning maneuvers required thanks to excellent mulching results in forward and reverse drive
Particularly robust "heavy-duty" design Fuel-saving, sensitive control and high efficiency thanks to electric hybrid drive

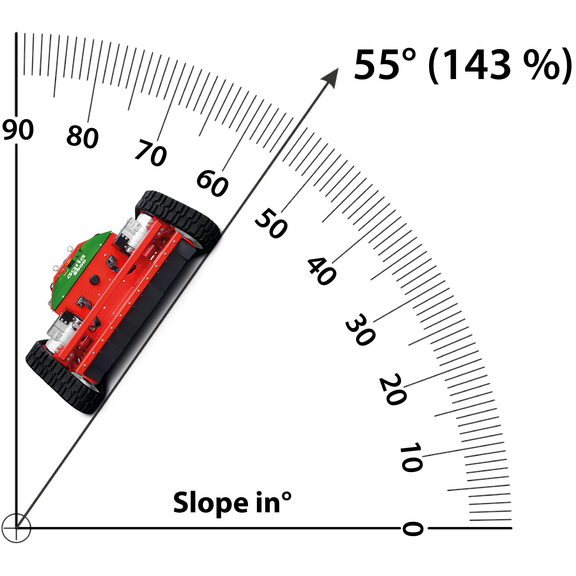

Safe mowing of steep slopes up to 55° (143 %)
Operation via Remote Control: Comfortable and safe working, free from stresses such as vibrations, noise and exhaust fumes
Very low maintenance requirements thanks to brushless Electric motors and brushless Generator
Easily accessible electric control box protects the electronic components from dust, vibrations and moisture

Flaps certified (DIN EN 12733:2019-09) (DIN EN 17106-4:2022-04)

Demonstration Configure now Downloads Dealers near you

Suitable attachments

Mulching

Options

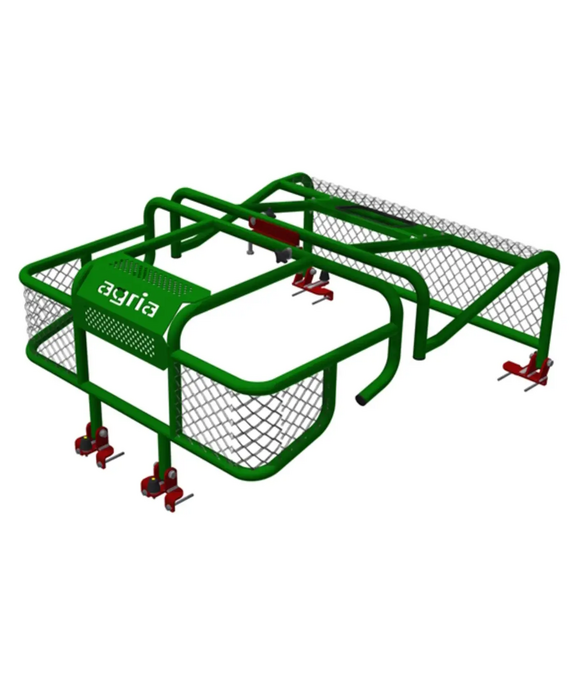

agria 9630211 Branch deflector — Art.No. 9630211

Art.No. 9620011

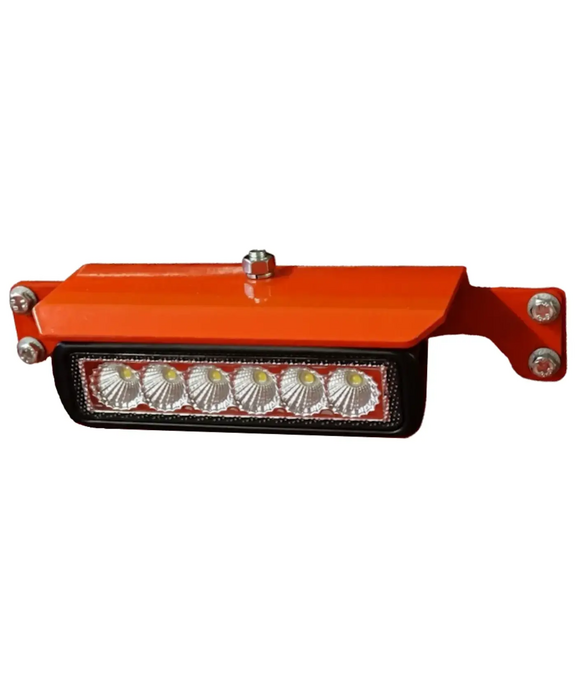

agria 9679241 LED function working lights with visual warning function — Art.No. 9679241

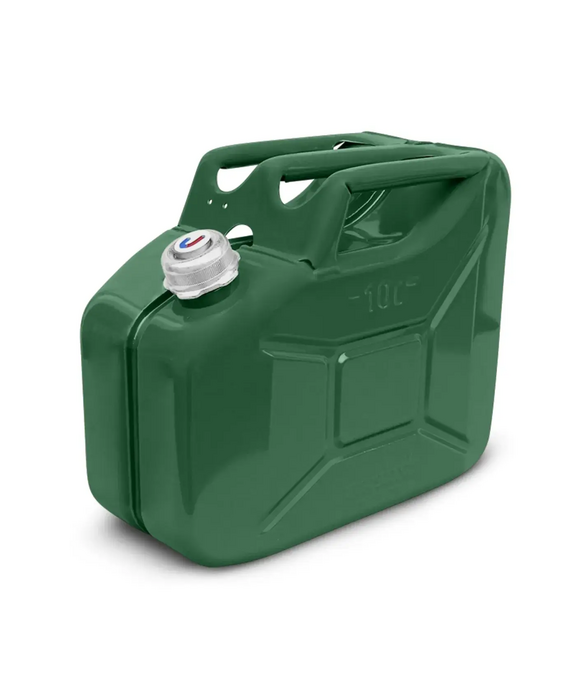

agria 9692011 Additional fuel can 10 l — Art.No. 9692011

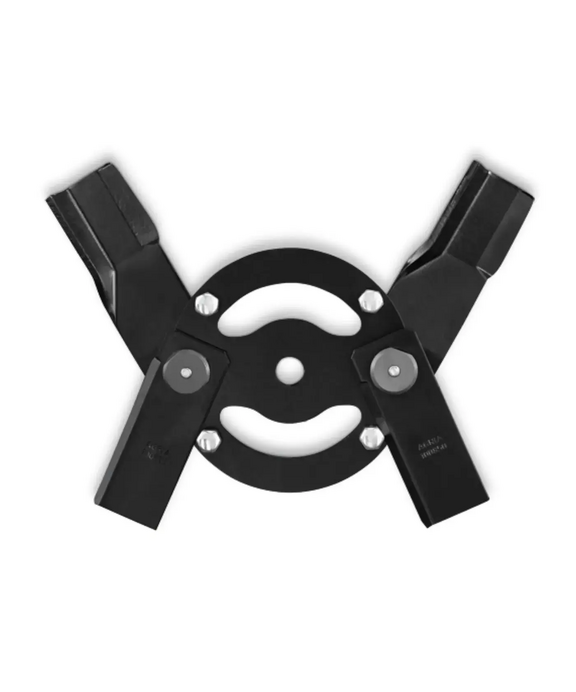

agria 9649111 Blades for first cut of spring grass — Art.No. 9649111

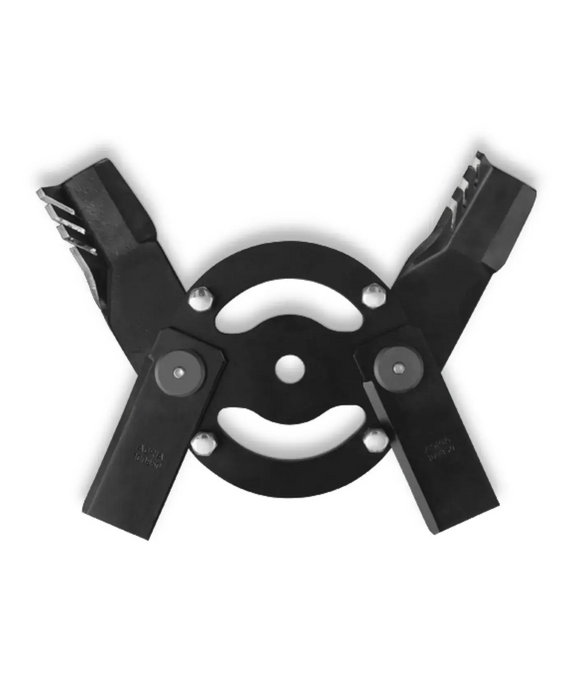

agria 9649211 Fine mulching blades — Art.No. 9649211

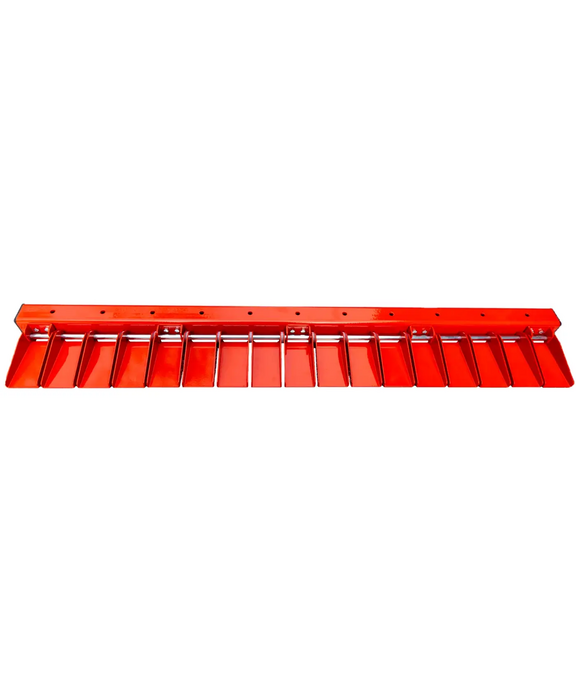

agria 9649311 Protective metal flaps — Art.No. 9649311

News

agria 9600 and agria 9500 at Matériel et Paysage

Powerful mowers in action – agria 9600 and agria 9500 put to the test at Matériel et Paysage

Remote-controlled power for extreme terrain: Discover the enthusiastic report on our agria 9600 and agria 9500 in the French trade magazine "Matériel…

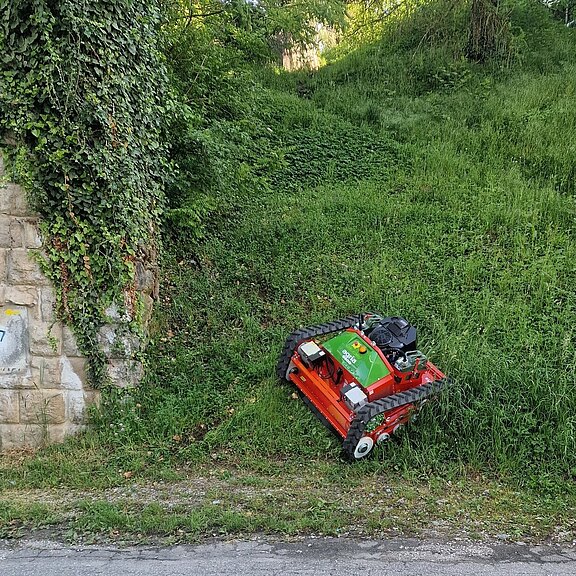

Happy first of May

Agria wishes you a happy first of May

Search result: 3 Question Questions

Up to what slope gradient can the agria 9600 machine be used safely?

Under normal conditions, the agria 9600 machine can be used on slopes of up to 55°.

Tags: Basic equipment, agria 9600 remote-controlled machine

What does the hybrid drive concept mean for remote-controlled devices?

With remote-controlled devices such as the agria 9500 or agria 9600, a powerful combustion engine supplies the power for the electric traction drives.
The power of the combustion engine can be fully utilized for the Cutter Drive.

Tags: Basic equipment, agria 9500 remote-controlled machine, agria 9600 remote-controlled machine

What is the range of the agria 9600 machine?

Due to the signal strength of the Remote Control, the maximum range of the agria 9600 is approximately 300 meters.
As no user can control the machine precisely at this distance, a maximum distance at which the user can safely control the machine is recommended in practice.
The range is usually a maximum of 80 - 100 meters.

Tags: agria 9600 remote-controlled machine, Basic equipment

Due to constant further development, we reserve the right to make changes to the scope of delivery in terms of form, technology and equipment. No claims can therefore be derived from the information and illustrations. Some product illustrations do not correspond to the delivery version and may contain accessories.
Weight specifications: without fuel, without oil and partly without Set of tires.
